The Impact of Mini Loudspeakers: How Miniaturization is Changing Audio

How can compact devices like laptops or smartphones deliver such rich and powerful sound, even with significant space constraints? Miniature loudspeakers are the unsung heroes behind this feat, allowing us to experience immersive audio even with the tiniest of gadgets. As the demand for compact, personalized devices grows, engineers are pushed to redefine what's possible in audio technology—shrinking loudspeakers without compromising sound quality.

Mini loudspeakers are compact versions of traditional loudspeakers, designed to fit into smaller devices without sacrificing sound quality. Unlike conventional loudspeakers with ample space for components, mini loudspeakers must overcome significant physical limitations, particularly related to sound quality, efficiency, and heat management. They are engineered to deliver clear, immersive audio in compact devices such as smartphones, laptops, kiosks, and casino gaming machines—devices where space is at a premium.

The key challenge in miniaturizing loudspeakers lies in overcoming the physical limitations of space and efficiency. Mini loudspeakers need sufficient room to move air effectively, which is especially important for producing lower frequencies that require significant air displacement. Moreover, effective heat dissipation becomes increasingly challenging in smaller designs, as the limited space restricts how well heat can be managed. These physical constraints make engineering high-quality, compact loudspeakers a complex task, requiring creative solutions and advancements in materials and design.

Understanding the Mechanics Behind Loudspeakers

To understand the challenges and innovations in mini loudspeaker design, it is essential to understand the fundamentals of how loudspeakers operate.

The Basics of Sound Transformation

Loudspeakers function as transducers—devices that convert one form of energy into another. Audio systems transform electrical energy into acoustic energy, creating sound waves humans can hear.

Here's a simplified breakdown of the process:

  1. An electrical signal from an audio source travels to the loudspeaker's voice coil, a tightly wound coil of wire.
  2. The voice coil acts as an electromagnet when current passes through it, generating a magnetic field.
  3. This electromagnet interacts with a nearby permanent magnet attached to the loudspeaker structure.
  4. The interaction between the electromagnet and the permanent magnet causes the voice coil—and the attached cone or diaphragm—to move back and forth rapidly.
  5. This movement pushes and pulls the surrounding air, producing sound waves that we perceive as music, dialogue, or other audio.

Physical Constraints in Miniaturized Loudspeakers

While the process of converting electrical signals into sound seems straightforward, miniaturizing loudspeakers introduces significant physical challenges, such as space for movement and heat management.

Space for Movement

Loudspeakers need sufficient room for the diaphragm and voice coil to move air effectively. Limited space restricts this movement in smaller loudspeakers, affecting sound quality, especially at lower frequencies where more air displacement is necessary. The diaphragm's ability to push and pull air is crucial for producing rich, full-bodied sound, and confined spaces hinder this process.

Heat Management

Only about 3-5% of the electrical energy is converted into sound waves; the rest is transformed into heat within the voice coil. This excess heat must be dissipated to prevent damage to the loudspeaker components. In larger loudspeakers, there's typically more room for heat to disperse. However, miniaturized loudspeakers have less physical space, making efficient heat dissipation a critical design concern.

Despite these constraints, engineers have developed innovative techniques to address these challenges. From utilizing advanced materials that improve heat management to optimizing enclosure designs for better air movement, overcoming these limitations requires a blend of creativity and cutting-edge technology.

The Importance of Enclosures in Mini Loudspeaker Performance

When it comes to loudspeakers—especially miniaturized ones—the enclosure is just as important as the internal components. Far from being mere housing, the enclosure significantly influences the quality and characteristics of the sound produced. Understanding enclosures' role can also illuminate the challenges and innovations in mini loudspeaker design.

Play Video: Speaker Materials 101: Speaker Enclosures

Why Enclosure Size Matters

In audio engineering, size often dictates capability. Larger loudspeakers and enclosures are adept at producing low-frequency sounds (bass), while smaller ones are better at high frequencies (treble). This is why subwoofers are substantial in size, and tweeters are comparatively tiny.

The reason lies in how air inside the enclosure interacts with the loudspeaker cone. Think of the air as a cushion or pneumatic spring that resists the cone's movement. This spring affects how easily the cone can move back and forth to produce sound waves:

  • In larger enclosures, there's more air, creating a softer spring. This allows the cone to move more freely, which is ideal for generating deep bass tones.
  • Smaller enclosures have less air, resulting in a stiffer spring. This stiffness restricts the cone's movement, making it challenging to produce low-frequency sounds.

The limited enclosure size inherently means less air inside for mini loudspeakers, leading to a stiffer air spring. This increased stiffness raises the system's resonant frequency—the natural vibration rate. A higher resonant frequency hampers the loudspeaker's ability to reproduce lower bass frequencies, potentially limiting the richness of the sound experience.

This is where creative enclosure integration becomes critical. By integrating the loudspeaker enclosure directly into the product's internal structure, manufacturers can maximize available space and enhance overall performance, resulting in more compact and efficient designs.

Integrating Loudspeaker Enclosures for Efficient Product Design

Manufacturers often integrate the loudspeaker enclosure into the product's internal space to achieve sleek and compact devices. This strategy offers several advantages:

Space Efficiency

Utilizing the device's internal cavity saves space and can create a larger, effective enclosure without increasing external dimensions.

Design Simplification

Incorporating the enclosure into the product reduces the need for separate loudspeaker housings, simplifying the overall design and potentially lowering manufacturing costs.

However, this approach presents its own set of challenges:

Vibration Control

All internal components must be securely fastened to prevent vibrations, buzzing, or rattling that could degrade sound quality.

Acoustic Optimization

The internal space must be carefully designed to function effectively as a loudspeaker enclosure. This may involve using specific materials or shapes to enhance acoustic performance.

Engineers employ various techniques to overcome these challenges, such as using damping materials to absorb unwanted vibrations or designing internal structures that guide sound waves more efficiently. These innovations are crucial for maximizing sound quality in miniaturized devices.

Turning Limitations into Advantages

The compact size of mini loudspeakers presents challenges, but it has also catalyzed innovation in audio engineering.

At first glance, increasing the power supplied to a mini loudspeaker might seem like a straightforward way to enhance loudness. However, this approach is impractical for several reasons. Firstly, the small voice coils and delicate components in mini loudspeakers cannot handle excessive power without risking damage. Secondly, from an acoustic standpoint, doubling the amplifier's power results in only about a 3 dB increase in Sound Pressure Level (SPL), which is barely noticeable to the average listener.

An effective strategy to enhance loudness without overloading the loudspeaker is to add additional loudspeakers to the system. By wiring two loudspeakers in parallel—assuming the amplifier can handle lower impedance levels—the system's SPL can increase by approximately 6 dB. This increase is significant and perceptible, effectively boosting overall loudness without stressing any single loudspeaker.

A practical example of this strategy can be seen in sound bars. Sound bars are designed to maximize audio performance within a compact form factor by employing multiple drivers, each optimized for a different frequency range. Using numerous loudspeakers allows sound bars to deliver high-quality sound without relying on a single driver to cover the entire frequency spectrum, effectively mitigating the limitations of compact loudspeaker designs.

Beyond adding more loudspeakers, engineers use other innovative solutions to turn these limitations into opportunities for advancement:

Advanced Materials

Utilizing lightweight, durable materials allows the loudspeaker diaphragm to move more freely, improving sound output within limited spaces.

Optimized Loudspeaker Placement

The strategic positioning of loudspeakers within a device can enhance acoustics, naturally amplifying sound without additional power.

Acoustic Engineering Techniques

Designing enclosures with specific shapes or incorporating acoustic chambers can amplify sound and improve quality.

These approaches illustrate how miniaturization challenges drive advancements in loudspeaker technology, resulting in compact devices that exceed audio expectations. However, while physical innovations lay the foundation for enhanced performance, integrating digital technologies like DSP and smart amplifiers allows engineers to overcome the inherent challenges of miniaturized designs further.

Leveraging DSP and Smart Amplifiers for Enhanced Audio Performance

A combination of hardware and software solutions is required to truly push the boundaries of what mini loudspeakers can achieve. Digital Signal Processing (DSP) and smart amplifiers play a critical role in addressing the limitations that physical strategies alone cannot solve.

Play Video: Digital Signal Processing (DSP) Helps Build Better Speaker Systems

DSP enhances audio quality by analyzing and adjusting the audio signal in real-time, optimizing various aspects of sound reproduction. It specifically addresses the challenge of limited low-frequency response in mini loudspeakers by boosting those frequencies in the audio signal. This adjustment enhances the overall frequency response, producing a more balanced and full-bodied sound. Additionally, DSP regulates dynamic range and phase alignment, controlling audio levels to prevent distortion and ensuring that multiple frequencies coherently reach the listener.

Smart Amplifiers complement DSP by dynamically adjusting power delivery according to the loudspeaker's capabilities. They monitor various operating conditions, such as temperature and impedance, to protect delicate components from damage caused by overheating or overloading. By working with DSP, smart amplifiers optimize power output and improve efficiency, maximizing audio performance while minimizing energy consumption and heat generation.

Beyond enhancing sound quality, these technologies provide additional benefits. DSP and smart amplifiers help increase reliability by preventing component failure due to overheating or overloading, extending the lifespan of the loudspeaker components, and improving overall energy efficiency. Together, DSP and smart amplifiers help bridge the gap between compact design and high-quality sound, offering a sophisticated balance between form and function. This combination of hardware and software innovations enables even the smallest loudspeakers to deliver an impressive audio experience, representing a significant advancement in mini loudspeaker technology.

Key Innovations Driving Mini Loudspeaker Design

While digital technologies like DSP and smart amplifiers have addressed many of the performance challenges in mini loudspeakers, further advancements require a focus on the physical aspects of design. Engineers have refined several key techniques and technologies, from enhancing material properties to optimizing acoustic designs, to ensuring that mini loudspeakers deliver impressive sound quality.

Passive Radiators

Passive radiators are devices that improve bass response in compact loudspeakers by utilizing passive elements to vibrate in sympathy with the active drivers. Instead of requiring additional power, passive radiators move in response to changes in internal air pressure caused by the primary loudspeaker's diaphragm. This design allows for an extended low-frequency response without needing larger enclosures or higher power consumption. As a result, mini loudspeakers can deliver deeper and more powerful bass, providing a richer and fuller listening experience that rivals larger systems.

Advanced Materials

Cutting-edge materials have played a significant role in enhancing the efficiency and sound quality of mini loudspeakers by addressing core challenges such as weight, magnetic strength, and energy conversion:

Lightweight Diaphragms

Materials like graphene and specialized polymers significantly reduce mass, allowing the diaphragm to move faster and more precisely. This improves high-frequency performance, resulting in clearer, more accurate treble and enhanced transient response. Using lightweight diaphragms is especially beneficial for portable devices like laptops and Bluetooth speakers, where detailed audio reproduction is crucial despite compact sizes.

High-Energy Magnets

Neodymium magnets provide a strong magnetic field while maintaining a compact size. This increases efficiency, enabling higher output and better overall performance without adding bulk. High-energy magnets are particularly important in portable consumer electronics, as they contribute to louder and more dynamic sound output, ensuring that small devices can deliver a powerful audio experience.

Acoustic Engineering Techniques

Advanced design methods are crucial for optimizing the acoustics of mini loudspeakers, especially within the limited spaces of compact devices:

Optimized Enclosure Design

Engineers use complex internal structures and shapes to manage airflow, reduce unwanted resonances, and minimize reflections. Fine-tuning these internal features ensures the sound remains distortion-free, resulting in a clearer and more pleasant audio experience. This is particularly important in compact products like tablets and smart home devices, where space limitations make it challenging to achieve high-quality sound.

Acoustic Modeling and Simulation

Advanced acoustic modeling and simulation software allow engineers to predict loudspeaker performance and refine designs before creating physical prototypes. Engineers can identify potential issues early by simulating how sound behaves within the enclosure and make necessary adjustments. This not only maximizes efficiency and reduces production costs but also guarantees that the final product delivers the best possible sound quality despite the constraints of miniaturized enclosures.

These innovations collectively push the boundaries of what's possible in mini loudspeaker technology, enabling compact devices to deliver sound quality that rivals larger systems.

Mastering the Challenges of Miniature Loudspeakers

Designing miniature loudspeakers presents significant challenges—limited space, heat dissipation, and the difficulty of producing full-range sound in compact enclosures are formidable obstacles. However, as we've explored, these challenges are not insurmountable. Through advanced materials, sophisticated digital signal processing, smart amplifiers, and optimized acoustic engineering, it is possible to create small loudspeakers that rival their larger counterparts in both performance and quality.

Overcoming these challenges requires not just advanced technologies but also a deep understanding of how to integrate these innovations effectively. Partnering with experienced loudspeaker manufacturers is critical to navigating these complexities. With the right expertise, even the smallest devices can deliver powerful, immersive sound that meets the high expectations of today's consumers.

Partners for Navigating Miniature Loudspeakers

Finding the right loudspeakers for your application requires a partner with deep expertise and decades of experience. With over 75 years in the industry, MISCO brings unparalleled knowledge to the design and production of high-quality, reliable loudspeakers.

MISCO offers comprehensive engineering services, conducting rigorous testing throughout the design process to ensure reliability. Our stringent end-of-line testing guarantees that each loudspeaker meets our high standards. Additionally, we provide a complete catalog of off-the-shelf solutions to help save time and resources without compromising performance.

If you’re seeking a trusted partner to develop high-quality loudspeakers, contact MISCO today. Our team is ready to assist you in finding the best solution to meet your project's unique needs.

Back to Blog

Related Articles

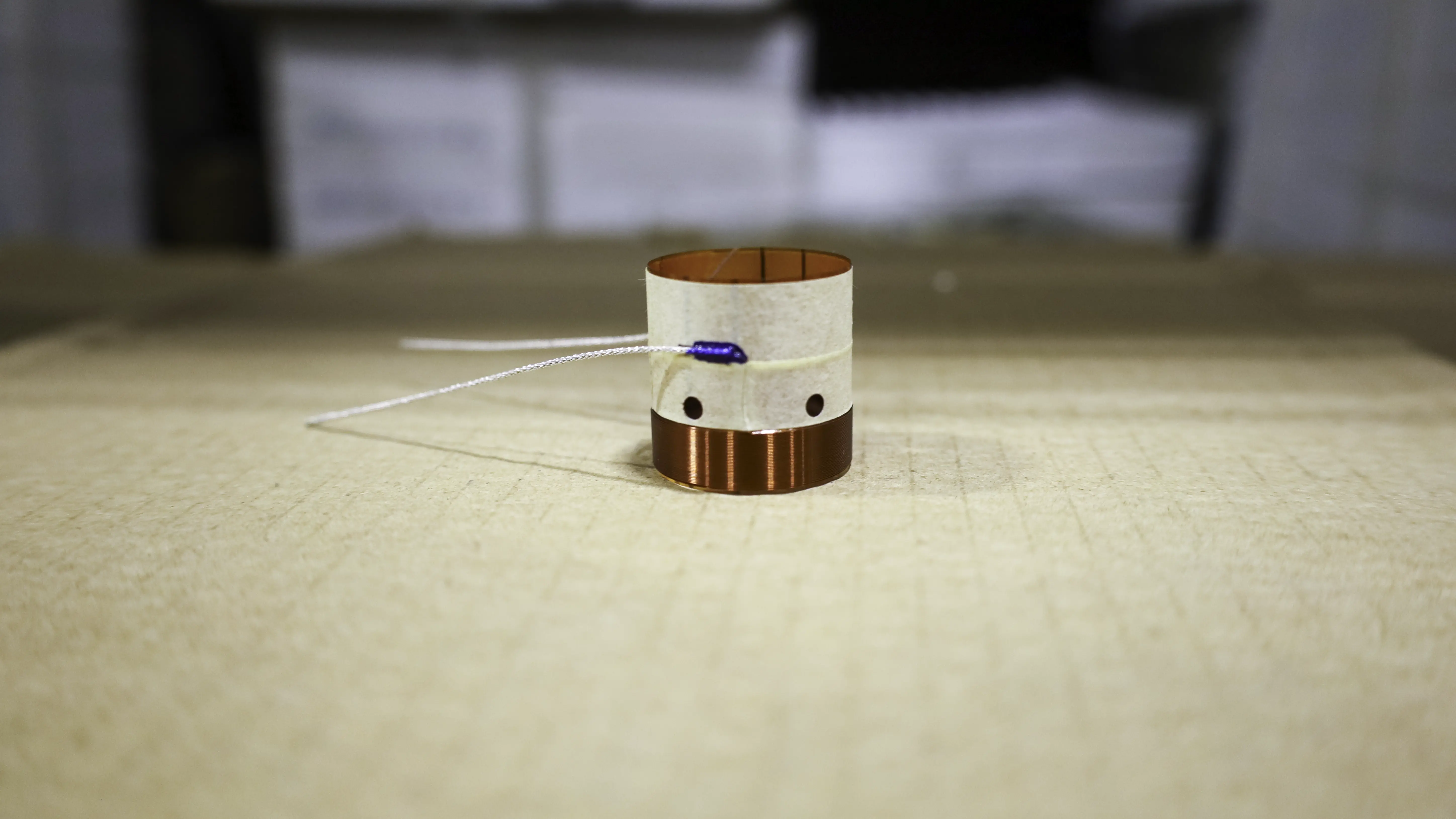

Thermal Management of Speaker Voice Coils - MISCO
